HILGE single and multi-stage centrifugal pumps in 316 rolled stainless steel provide exceptional solutions for specialized applications and processes in a variety of fields. Since 1867, Hilge pumps have manufactured in Mainz, Germany to exact specifications and materials. Their popularity and durability is such that ALL German breweries use Hilge pumps for beer manufacturing.
Hilge Pumps are designed to cope with media with unique physical and chemical characteristics. Shanley Pump and Equipment, Inc. has been carrying the Hilge line for over a decade with an excellent track record of service and reliability. Hilge Pumps are manufactured from the best quality titanium-stabilized, rolled nickel-chrome-molybendium steel material for a lifetime of service. Hilge puts this material through a seven-stage rolling process which is further stiffened in deep-drawing under 500 tons.
This material offers strengths and properties that are unparalleled in the field of sanitary pumps. To the right is a representation of the differences between a typical cast manufacture and a Hilge Rolled manufacture process.
As you can see, the "pore free" cold-rolled Hilge pump has less surface area to collect foreign debris. Their surface finish is 0.4µm, 240 grit and low (&le1%) ferrite content, ensuring these pumps are ideal for use in the fields of pharmaceutical, food, and brewery manufacturing. If cleanliness is your goal, let Hilge pumps in stainless steel be your answer.
|
|
|
|
|
|
|
|
Microscopic side view of pump-wall
|
|
|
|
 |
Adapta® is an innovative approach to conventional plug-in shaft installations. Through unique modular bearing adapter housing system accommodates a wide range of drive units and pump models. Adapta® is easily installed on all standard and NEMA motors, using only an adapter flange. The Pump shaft is connected to the drive unit with a standard compact flexible coupling.
With a built-in double ball-bearing modular construction, the Adapta® achieves long life and low pump maintenance.
|
 |
Available in a bare shaft foot mount or a space saving vertical design configuration, it ensures optimal drainage of the pump casing through the suction port.
The Sensi-Flow system uses long, hydro-dynamically shaped impeller blades and strategically placed impellers to reduce the velocity gradient and minimize shear normally associated with other pump designs. The pump housing has been designed so that the liquid particles, instead of colliding, are smoothly engaged and the liquid ONLY moves in streamlines.
The Hilge design has been proven in independent studies to yield the lowest shear, resulting in gentle product handling.
Foe more information about the unique Adapta® system, please contact a factory trained Shanley Pump and Equipment representative at 847-439-9200 or email us. |
|
|
|
|
The Hilge Portable Multifunction Brewing Pump offers unmatched performance and unequalled reliability when the superior,smooth surface cold-rolled stainless-steel case is combined with its unique "sensi-Flow" design.
The result produces the most gentle handling and totally quiet transfer of all your brewery products. Not only will you receive multifunction portability, but also the total benefits of Hilge Pumps outstanding quality and efficiency for your brewery operation.
If you're interested in adding portable multifunction to your brew pub or micro brewery, then let ne of our factory-trained engineers custom match a Hilge Portable Multifunction Brewing Pump for your specific application today!
Click me for more Information For more information,please feel free to contact us
at 847-439 -9200 or email us.
|
-
Ideal for Brewing, Filling, Filters, CIP, and all Keg Washer Applications
-
Competitively Priced
-
Available with VFD for both variable speed and variable duty applications.
-
Mounted on a steady, durable cart for years of service.
-
Standard Baldor 1HP wash down or SMART motor.
-
Single-stage, with maximum flow of 35 GPM & Head of 70 feet.
-
Optional Multi-Stage Pump
-
25' of power cord supplied, purchaser to provide plug.
|
|
|
|

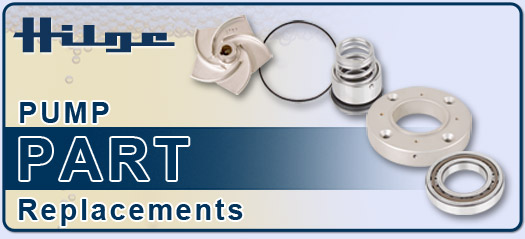

We stock a full compliment of Hilge Factory Parts and replacement components for all Hilge centrifugal pumps model. let us be your solution.
Our fully factory-trained staff is here to help you. From a single screw to a completely new system, our engineering staffs years of experience guarantee you the best in both quality and service. We carry parts for all Hilge pump lines including but not limited to:
- Hilge Hygiana Series
- Hilge Durietta 0 Series
- Hilge Contra Series
- Hilge Euro-Hygia Series
- Hilge SIPLA Series
- Hilge MAXA Series
- Hilge MAXIANA Series
- Hilge Nova Lobe Series
- Hilge Series no longer manufactured
For more information, please feel free to contact us at 847-439-9200 or email us.
|
 |
|
If you have any questions regarding Hilge specialty centrifuge pumps,. please feel free to contact on of our factory trained engineers by phone at 847-439-9200 or you can email us with any questions you may have. |
|
| |
